TX04 mitigates interference by creating nulls in the antenna gain pattern in the direction of jammers, providing significant anti‑jam protection even in dynamic multi‑jammer scenarios. The output is a protected standard Radio Frequency (RF) signal, free from jamming and suitable for input to modern and legacy GNSS receivers.

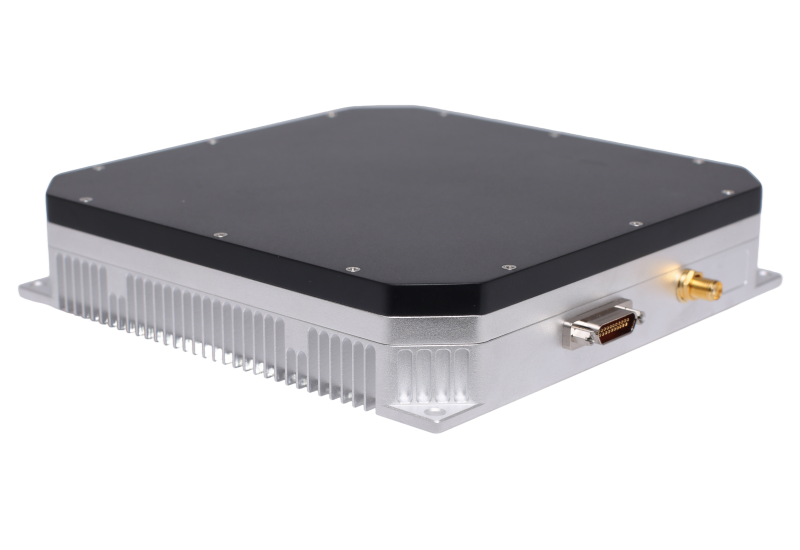

TX04 Anti-Jam CRPA System supports critical missions by providing jam free GNSS signals.
With an 8-array CRPA antenna, the system can assure the normal operation of GNSS receiver in presence of multiple jamming sources.
TX04 Anti-Jam CRPA System can be employed using various configuration and operates with civil and military GPS receivers for the land, sea, air platforms (including unmanned aerial systems) and fixed installations. The product has an embedded GNSS receiver that supports all satellite constellations.
· How it works
TX04 mitigates interference by creating nulls in the antenna gain pattern in the direction of jammers, providing significant anti‑jam protection even in dynamic multi‑jammer scenarios. The output is a protected standard Radio Frequency (RF) signal, free from jamming and suitable for input to modern and legacy GNSS receivers.
| • BENEFITS | • APPLICATION AREAS |
| • Immediate availability for urgent operational needs | • Fixed Winged Aircraft |
| • Simple assembly means easy to install or retrofit | • Rotary Wing Aircraft |
| • Compatible with all types of external GPS receivers and vehicle navigation systems | • Unmanned Autonomous Systems |
| • Minimal integration training required | • Armored Vehicles |
| • Light Weight | • Naval Platforms, Coast Guard Platforms |
| • Ultra Compact Size | |
| • Superior Suppression Performance | |
· Performance Index:
| Dimensions (mm) | 160×160×35 |
| Weight (g) | <770 |
| Power Consumption (w) | < 25 |
| Antenna Array | 4 + 4 Array CRPA Antenna |
| Simultaneous Independent Nulling | 3 (L1) + 3(L2) |
| Simultaneous Active Bands | GPS L1 and L2，GALILEO E1，BEIDOU B1 |
| Nominal Wideband Suppression | <95dB J/S performance based on performance of typical GPS receivers, in the presence of 3 spatially diverse broadband jammers |
| Data Interface | Serial |
| Connectors | 1x SMA Female , J30J 21-pin Socket |
| Operating Voltage | 12V DC |
| Operating Temperature | -40 °C ~ +70 °C |
