•GENERAL DESCRIPTION
The TX05K GNSS navigation anti-jamming antenna can suppress them using spatial filtering. It employs signal processing techniques to filter out interference, reconstruct the original interference-free signal, and then transmit it to a standard GNSS receiver.
Additionally, the TX05K offers anti-spoofing capabilities. Leveraging proprietary GNSS technology, it enhances protection against both jamming and spoofing attacks, ensuring robust and reliable navigation for the platform in environments threatened by such signals. This integration of advanced technologies makes the TX05K a comprehensive solution for GNSS-based safety across various platforms.
• How it works
The TX05K mitigates interference by creating nulls in its antenna gain pattern toward jammers. For RNSS spoofing prevention, it identifies spoofing signals through individual satellite signal scanning, filters out erroneous ones, and tracks real signals. This delivers robust anti-jamming protection even in dynamic multi-jammer environments. Its output is a protected, interference-free standard radio frequency (RF) signal, compatible with both modern and legacy GNSS receivers.
· BENEFITS | • APPLICATION AREAS |
• Immediate availability for urgent operational needs | • Fixed Winged Aircraft |
• Simple assembly means easy to install or retrofit | • Rotary Wing Aircraft |
• Minimal integration training required | • Unmanned Autonomous Systems |
• Light Weight | • Armored Vehicles |
•Ultra Compact Size | •Naval Platforms, Coast Guard Platforms |
• Superior Suppression Performance | |
• Compatible with all types of external GPS receivers and vehicle navigation systems | |
• Anti-spoofing |
· Performance Index:

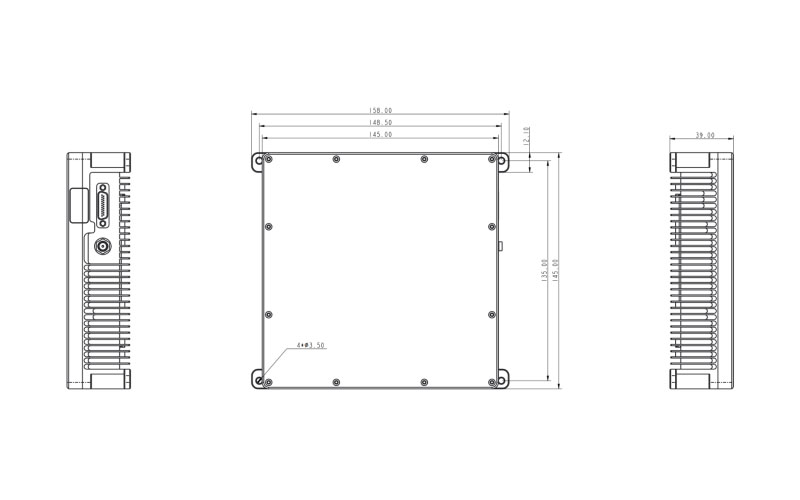

| Dimensions (mm) | 145×145×39 |
| Weight (g) | < 700 |
| Power Consumption (w) | < 24W |
| Antenna Array | 8 |
| Simultaneous Independent Nulling | 7 |
| Simultaneous Active Bands | GPS L1，GALILEO E1，BEIDOU B1 |
| Nominal Wideband Suppression | >90 dB J/S performance based on performance of typical GPS receivers, in the presence of 7 spatially diverse broadband jammers |
| Connectors | 1 x SMA Female , J30J 21-pin Socket |
| Operating Voltage | 12-35 VDC |
| Operating Temperature | -40 °C to +70 °C |
