· GENERAL DESCRIPTION
· How it works
TX18 mitigates interference by creating nulls in the antenna gain pattern in the direction of jammers, providing significant anti‑jam protection even in dynamic multi‑jammer scenarios. The output is a protected standard Radio Frequency (RF) signal, free from jamming and suitable for input to modern and legacy GNSS receivers.

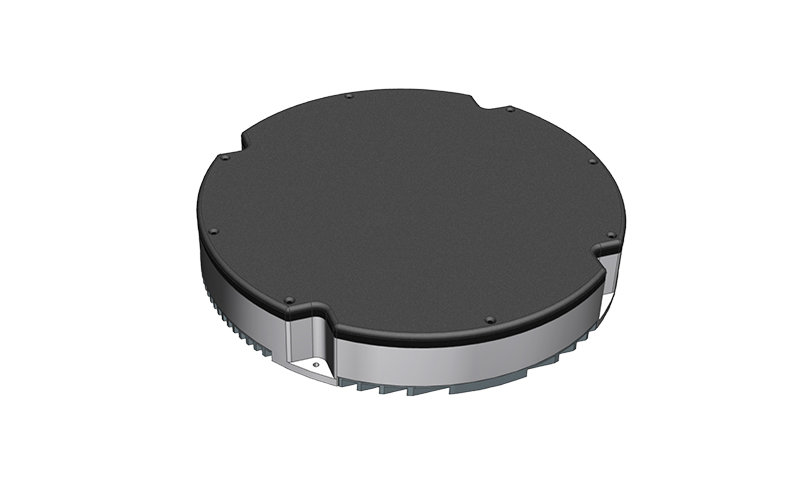

TX18 Anti-Jam CRPA System supports critical missions by providing jam free GNSS signals.
With an 11-array CRPA antenna, the system can assure the normal operation of GNSS receiver in presence of multiple jamming sources.
TX18 Anti-Jam CRPA System can be employed using various configuration and operates with civil and military GPS receivers for the land, sea, air platforms (including unmanned aerial systems) and fixed installations. The product has an embedded GNSS receiver that supports all satellite constellations.
· How it works
TX18 mitigates interference by creating nulls in the antenna gain pattern in the direction of jammers, providing significant anti‑jam protection even in dynamic multi‑jammer scenarios. The output is a protected standard Radio Frequency (RF) signal, free from jamming and suitable for input to modern and legacy GNSS receivers.
| • BENEFITS | • APPLICATION AREAS |
| • Simple assembly means easy to install or retrofit | • Fixed Winged Aircraft |
| • Compatible with all types of external GPS receivers and vehicle navigation systems | • Rotary Wing Aircraft |
| • Minimal integration training required | • Unmanned Autonomous Systems |
| • Light Weight | • Armored Vehicles |
| • Ultra Compact Size | • Naval Platforms, Coast Guard Platforms |
| • Superior Suppression Performance |
· Performance Index:
| Dimensions (mm) | Ø252×36.5 |
| Weight (g) | <1100 |
| Power Consumption (w) | <25 |
| Antenna Array | 11 |
| Simultaneous Independent Nulling | 9 |
| Nominal Wideband Suppression | GPS L1L2，GAL E1，BDS B1，GLO L1 |
| Anti-interference Performance | >95 dB J/S based on performance of typical GPS receivers, in the presence of 3 spatially diverse broadband jammers |
| Data Interface | Serial |
| Connectors | 1x SMA Female , 1xJ30J 21-pin Socket |
| Operating Voltage | 12VDC |
| Operating Temperature | -40 °C ~ +70 °C |
