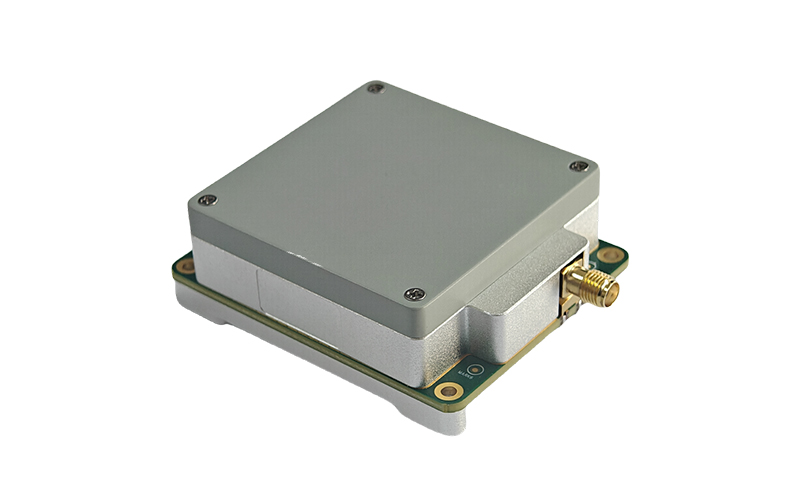

The TX22 GNSS navigation anti-jamming antenna is a satellite navigation anti-jamming antenna specially designed for FPV platforms. TX22 Anti-Jam CRPA System supports critical missions by providing jam free GNSS signals.
With a 2-array CRPA antenna, the system can assure the normal operation of GNSS receiver in presence of multiple jamming sources.
TX22 Anti-Jam CRPA System can be employed using various configuration and operates with civil and military GPS receivers for the land, sea, air platforms (including unmanned aerial systems) and fixed installations. The product has an embedded GNSS receiver that supports all satellite constellations.
· How it works
TX22 mitigates interference by creating nulls in the antenna gain pattern in the direction of jammers, providing significant anti‑jam protection even in dynamic single wideband jammer scenarios. The output is a protected standard Radio Frequency (RF) signal, free from jamming and suitable for input to modern and legacy GNSS receivers.
|
• BENEFITS |
• APPLICATION AREAS |
|
• Proven technology |
• FPV and other size-constrained unmanned system platforms |
|
• Extremely low cost |
|
|
• Lightweight design |
|
|
• Simple assembly means easy to install or retrofit |
|
|
• Compatible with all types of external GPS receivers and vehicle navigation systems |
· Performance Index:
|
Dimensions (mm) |
<70×57×25 |
|
Weight (g) |
<110 |
|
Power Consumption (w) |
<7 |
|
Antenna Array |
1 |
|
Simultaneous Independent Nulling |
1 |
|
Simultaneous Active Bands |
GPS L1，GAL E1，BDS B1 |
|
Nominal Wideband Suppression |
>100 dB J/S Based on the performance of a typical GPS receiver, in the presence of 1 narrowband jammer >95 dB J/S Based on the performance of a typical GPS receiver, in the presence of 1 wideband jammer |
|
Data Interface |
Serial |
|
Connectors |
SMA Female |
|
Operating Voltage |
12VDC |
|
Operating Temperature |
-40 °C ~ +70 °C |
